90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel

Product Categories
WENZHOU YIHENG MACHINERY CO.,LTD
Contact Now

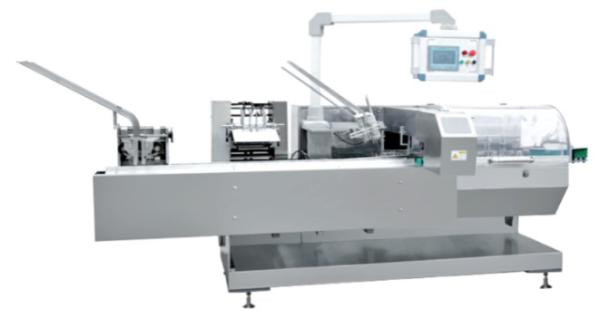

90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel

  • 1
  • 2

Brand Name : Gracias

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 60sets per month

Delivery Time : 30 work days

Packaging Details : Standard export package

Voltage : 380V 50Hz 3phases

Condition : New

Weight : About 1.5t

Warranty : 1 Year

Control system : PLC

After-sales service provided : Online support

Contact Now

90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel

Technical parameter

Cartoning spedd 40-90box/min
Paper requirements 250-400g/m2
Pressure >0.6Mpa
Air consumption 20m3/h
Voltage 220/380V 50Hz
Main motor power 1.5KW
Dimension 3500x1300x1600mm
Weight 1300KG

List of main components

PLC DVP12SC11T
PLC expansion module DVP16SP11R
Encoder E6B2
Touch screen DOP-B05
Frequency converter DVP01521A
Light eyes E3Z-D61
Motor CH-1500-10S 1.5KW
Indexing box 0S83-4L-180
Button XB2
Emergency stop ZB2 BC4D
Intermediate relay LY2M 24V
AC contactor GML-12
Close the switch LJ12A3-4-Z1BX
Shell Stainless steel


Product Tags:

90box/min Semi Automatic Cartoning Machine



1.5KW Semi Automatic Cartoning Machine



ss cartoner packaging machine


Quality 90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel wholesale

90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel Images
